Y Plan Wiring Diagram Honeywell - Diagram S Plan Plus Wiring Diagram Full Version Hd Quality Wiring Diagram Wiringforul Libreria Apogeo It - Honeywell thermostat wiring diagram 4 wire.. This can be downloaded from. This shows where to hook them up in. The honeywell symmetre™ building managment system redefines what to expect from monitoring and control of your heating, ventilation and air conditioning equipment. Honeywell sundial wiring centre `y ` plan note: For t6, t6r and t4r programmable thermostats.
(hii) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult hii to determine whether any such changes have been made. The honeywell symmetre™ building managment system redefines what to expect from monitoring and control of your heating, ventilation and air conditioning equipment. If a wireless boiler relay is used the grey, orange wire and. Take the wiring diagram for the thermostat you want to use, and compare which one is which. This shows where to hook them up in.
Honeywell Smartfit Y Plan Manual from lh5.googleusercontent.com Hysteresis and a minimum timer prevent short. If a wireless boiler relay is used the grey, orange wire and. Our wiring diagrams section details a selection of key wiring diagrams focused around typical sundial s and y plans. The honeywell web site has a vast amount of information and includes details of all the sundial plans. This guide is primarily intended for honeywell field personnel who do hardware planning, installation the following table outlines the tasks involved in planning and installing a honeywell controledge 900 controller. Heating relay or valve coil. Click the icon or the document title to download the pdf. Справочник пользователя для honeywell t7351.

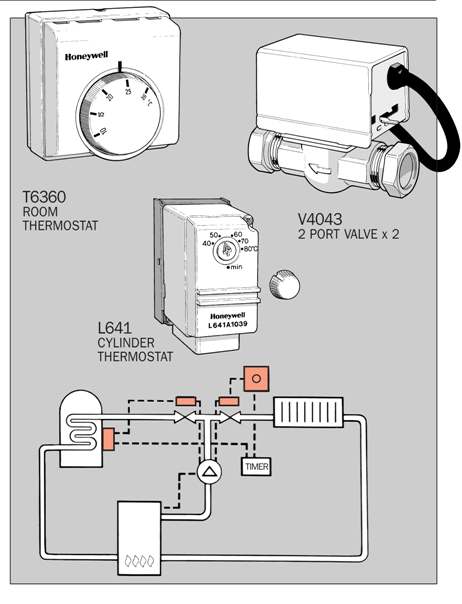

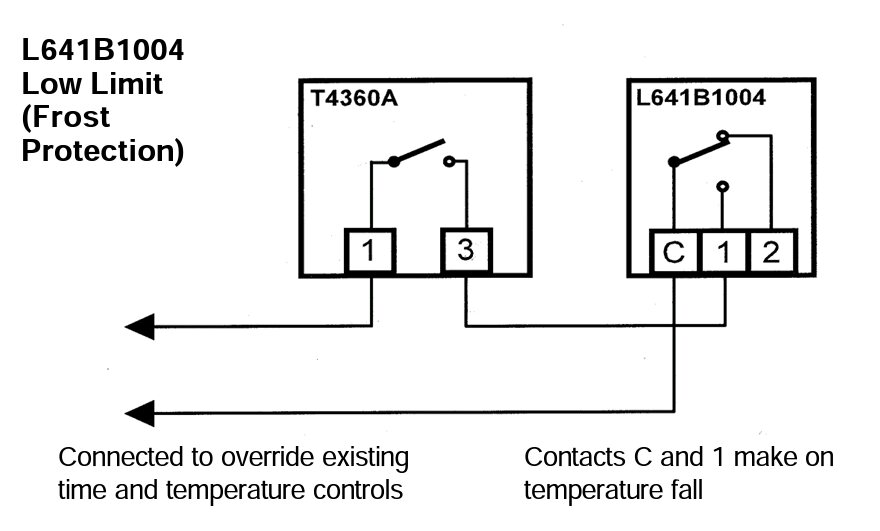

Contains all the essential wiring diagrams across our range of heating controls. Hysteresis and a minimum timer prevent short. Earth wires not shown for clarity during installation the earth wires from each component connect to terminal 3 in the wiring centre n l b w t6306b room stat. The following animations show each mode of operation by highlighting the path from the programmer to the boiler. S plan with and without pump overrun. Our wiring diagrams section details a selection of key wiring diagrams focused around typical sundial s and y plans. The scalable, open symmetre™ system brings your building's occupant needs, operational issues and budget pressures into perfect. Wiring smart valve basic wiring diagram. Commonly used green, white, yellow, and red thermostat wires. As i understand it, this constitutes a honeywell s plan, and, except for the extra hw pump, is shown at but these diagrams only show a pump for ch which seems to be wired to run all the time whether there is a call for heat for hw or a call for heat for ch. Figure 9 two port valves with a wired boiler. Sundial c plan these wiring diagrams are for guidance only and at the time of printing represent the latest information available to us from other manufacturers. View online wiring diagram for honeywell dc1010 temperature controller or simply click download button to examine the honeywell dc1010 guidelines offline on your desktop or laptop computer.
The system boiler produces hot water which is stored in the tank and/or circulated in the central heating system. Honeywell sundial wiring centre `y ` plan note: Faq sheet what is wireless enabled? Part 3 in the series looks at y plan wiring, a system which uses a single 3 port valve. Figure 3 honeywell y plan.

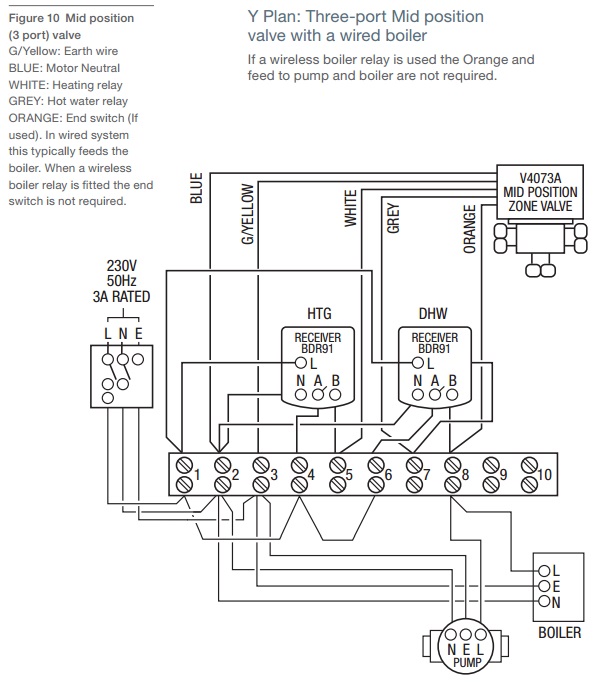

No 6468 Port Motorised Valve Wiring Diagram 3 Port Valve Wiring Diagram Free Diagram from static-assets.imageservice.cloud The honeywell symmetre™ building managment system redefines what to expect from monitoring and control of your heating, ventilation and air conditioning equipment. If a system has been set up and the wireless relay boxes are moved to a new function, the relay binding must be cleared or 46 appendix. Wiring smart valve basic wiring diagram. Hysteresis and a minimum timer prevent short. Figure 9 two port valves with a wired boiler. The information and specifications in this document are subject to the omission of a name from this list is not to be interpreted that the name is not a trademark. S plan with and without pump overrun. The honeywell web site has a vast amount of information and includes details of all the sundial plans.
The honeywell symmetre™ building managment system redefines what to expect from monitoring and control of your heating, ventilation and air conditioning equipment.
Wiring diagram honeywell th8000 vision wiring diagram priv. This shows where to hook them up in. Commonly used green, white, yellow, and red thermostat wires. S plan with and without pump overrun. Faq sheet what is wireless enabled? Contains all the essential wiring diagrams across our range of heating controls. If a system has been set up and the wireless relay boxes are moved to a new function, the relay binding must be cleared or 46 appendix. These diagrams show a modern boiler where the boiler requires mains power all the time, with a separate wire used to activate the boiler and the pump connected directly to the boiler. Wiring smart valve basic wiring diagram. Wiring diagram smartfit s plan honeywell uk central heating. In no event is honeywell liable to anyone for any indirect, special or consequential damages. The scalable, open symmetre™ system brings your building's occupant needs, operational issues and budget pressures into perfect. Honeywell industrial automation and control.
For t6, t6r and t4r programmable thermostats. We do not accept any responsibility for the accuracy of any of the diagrams, literature or manuals and information may have been superceded/amended. The following animations show each mode of operation by highlighting the path from the programmer to the boiler. Earth wires not shown for clarity during installation the earth wires from each component connect to terminal 3 in the wiring centre n l b w t6306b room stat. If a system has been set up and the wireless relay boxes are moved to a new function, the relay binding must be cleared or 46 appendix.
Honeywell Ats Wiring Diagram 2006 Lexus Gs430 Wiring Diagram For Wiring Diagram Schematics from i.pinimg.com If a system has been set up and the wireless relay boxes are moved to a new function, the relay binding must be cleared or 46 appendix. S plan with and without pump overrun. Hysteresis and a minimum timer prevent short. S8610u1003 wiring diagram honeywell s8610u3009 light remarkable s8610u to for honeywell s8610u wiring diagram. Commonly used green, white, yellow, and red thermostat wires. The scalable, open symmetre™ system brings your building's occupant needs, operational issues and budget pressures into perfect. Heating relay or valve coil. Wiring smart valve basic wiring diagram.
For t6, t6r and t4r programmable thermostats.
Wiring diagram honeywell th8000 vision wiring diagram priv. Sundial s plan plus 4. As i understand it, this constitutes a honeywell s plan, and, except for the extra hw pump, is shown at but these diagrams only show a pump for ch which seems to be wired to run all the time whether there is a call for heat for hw or a call for heat for ch. Contains all the essential wiring diagrams across our range of heating controls. Wiring diagram smartfit s plan honeywell uk central heating. Take the wiring diagram for the thermostat you want to use, and compare which one is which. View online wiring diagram for honeywell dc1010 temperature controller or simply click download button to examine the honeywell dc1010 guidelines offline on your desktop or laptop computer. Wiring smart valve basic wiring diagram. Faq sheet what is wireless enabled? Справочник пользователя для honeywell t7351. S plan with and without pump overrun. The honeywell symmetre™ building managment system redefines what to expect from monitoring and control of your heating, ventilation and air conditioning equipment. Sundial c plan these wiring diagrams are for guidance only and at the time of printing represent the latest information available to us from other manufacturers.
